Home » Products » Dispersing Emulsifier » PLM/PDH-XT Series Powder&Liquid Mixing System

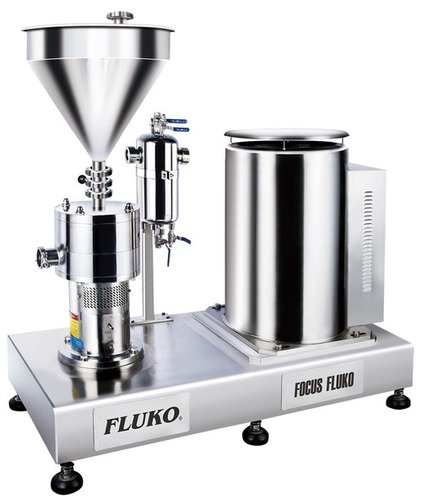

PLM/PDH-XT Series Powder&Liquid Mixing System

PLM/PDH-XT Series Powder&Liquid Mixing System
PLM/PDH-XT Series Powder&Liquid Mixing System
Product Code : PLM/PDH-XT Series
Brand Name : FLUKO
Product Specifications
  • Type
  • Inline
  • Capacity
  • 40 Cubic Meter (m3)
Product Description
Advantage

Quick dosing:
Powder can be sucked very quickly with maximum speed of 200kg/min, and different kinds of powder can be dispersed quickly and evenly.

Quality enhancement:
In inline processes easily and uniformly dissolve CMC, xanthan gum and other gel products of high viscosity and expansibility.

Energy saving:
Powder can be dissolved in chilled water to preserve nutrient substances and avoid bacterial growth.

Sanitation design:
Convenient cleaning, CIP/SIP availability and compliance with international sanitation standards and regulations;

Process improvement:
Dust-free feeding, avoidance of expansive powder agglomeration and therefore no risk of lumping;

Cost saving:
The equipment can be integrated with modular systems, eliminating the need for multiple containers, pipelines, valves and agitators, and thus saving equipment investment and production cost.

Model

Moter Power(kw)

Rotation Speed(rpm)

Flow Rate

Range(m3/h)

Max.Powder

Suction Rate(kg/min)

Inlet/Outlet

size

PDH 100-XT

3

2900

7

2

DN20/DN20

PDH 120-XT

4

2900

10

4

DN25/DN25

PDH 140-XT

7.5

2900

15

6

DN32/DN32

PDH 165-XT

11

2900

20

6

DN40/DN40

PDH 180-XT

18.5

2900

25

6

DN50/DN50

PDH 200-XT

22

2900

32

8

DN65/DN65

PDH 210-XT

30

2900

40

10

DN65/DN65


Trade Information
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Main Export Market(s)
  • Middle East, Australia, Asia
  • Main Domestic Market
  • All India
